Tantalum Carbide Coating

VeTek semiconductor est primarius fabricae Tantali Carbide Coating materias semiconductoris industriae. Nostrae oblationes principales productae includunt partes CVD tantalum carbidam coating partes, sintedi TaC partes efficiens pro cristallo augmenti SiC vel epitaxiae semiconductoris. Transierunt ISO9001, VeTek Semiconductor bonam potestatem in qualitate habet. VeTek Semiconductor dicatus est ut innovator factus sit in Tantalum Carbide Coating industriam per permanentem inquisitionem et progressionem technologiarum iterativarum.

Pelagus products suntTaC Coated Guide Ring, CVD TaC iactaret tres petal dux anulus, Tantalum Carbide TaC Coated Halfmoon, CVD TaC coating planetarium SiC epitaxial susceptor, Tantalum Carbide Ring, Tantalum Carbide Coated Porous Graphite, TaC Coating Rotatione Susceptor, Tantalum Carbide Ring, TaC Coating Rotatione Plate, TaC iactaret laganum susceptor, TaC Coated Deflector Ring, CVD TaC Coating Cover, TaC Coated Chucketc., puritas est infra 5ppm, occurrere mos requisitis.

TaC graphite coating creatum est superficies graphitae altae puritatis substratae cum strato subtilissimo carbidi tantali per Depositionis Vaporis chemici proprietatis (CVD) processum. Commodum infra picturam ostenditur:

Excellent properties of TaC coating graphite

Tantalum carbide (TaC) efficiens attentionem consecuta est ob altitudinem eius liquescentis punctum usque ad 3880°C, excellentem roboris mechanicam, duritiem et resistentiam ad pulsuum thermarum, idque amabili modo ad compositiones semiconductoris epitaxy processuum cum temperatura superiori requisitis; ut Aixtron MOCVD systema et LPE SiC processum epitaxy. Etiam late patet in PVT methodo SiC processum cristallinum.

Key Features:

●Temperatus stabilitas

●Ultra alta munditia

●Resistentia ad H2, NH3, SiH4, Si

●Resistentia ad scelerisque stirpe

●Fortis adhaesio graphite

●Conformal coating coverage

● Magnitudo usque ad 750 mm diameter (Sola fabrica in Sinis hanc magnitudinem attingit)

Applications:

●Azymum carrier

calefactio inductiva susceptor

calefactio elementum resistens

●Satellite orbis

●imber caput

●dux anulus

●LED Epi susceptor

●COLLUM iniectio

●Masking anulum

Calor scutum

Tantalum carbide (TaC) efficiens microscopic cross-sectioni:

the microscopic cross-section of Tantalum carbide (TaC) coating

Parameter VeTek Semiconductor Tantalum Carbide Coating:

Corporalis proprietatibus TaC coating
Densitas	14.3 (g/cm³)
Imprimis emissivity	0.3
Scelerisque expansion coefficientes	6.3 10^-6/K
Duritia (HK)	2000 HK
Resistentia	1×10^-5Ohm* cm
Scelerisque status	<2500℃
Graphite magnitudine mutationes	-10~-20um
Crassitudo coating	≥20um valorem typicum (35um±10um)

TaC coating EDX data：

EDX data of TaC coating

TaC efficiens crystal structuram data:

Elementum	Cento atomicus
	Pt. 1	Pt. 2	Pt. 3	Mediocris
C K	52.10	57.41	52.37	53.96
The M	47.90	42.59	47.63	46.04

TaC Coating Chuck TaC Coating Planetary Orbis
TaC Coated Plate TaC Coating Rotatione Plate TaC coating susceptor CVD TaC coating Cover CVD TaC Coating Ringo TaC Coating Plate

View as

Tac coating tubi

Vetisek Semiconductor est Tac coating tubi est a key component ad prospere incrementum Silicon carbide unum crystallis. Cum suis summus temperatus resistentia, chemical inertness et optimum perficientur, quod ensures productionem summus qualitas crystallis cum consistent results. Spera nostri innovative solutions ad augendae vestri Pvt modum sic crystallum incrementum processus et consequi optimum results.welcome inquisitionis nobis.

View More >> Mitte Inquisitionem >>

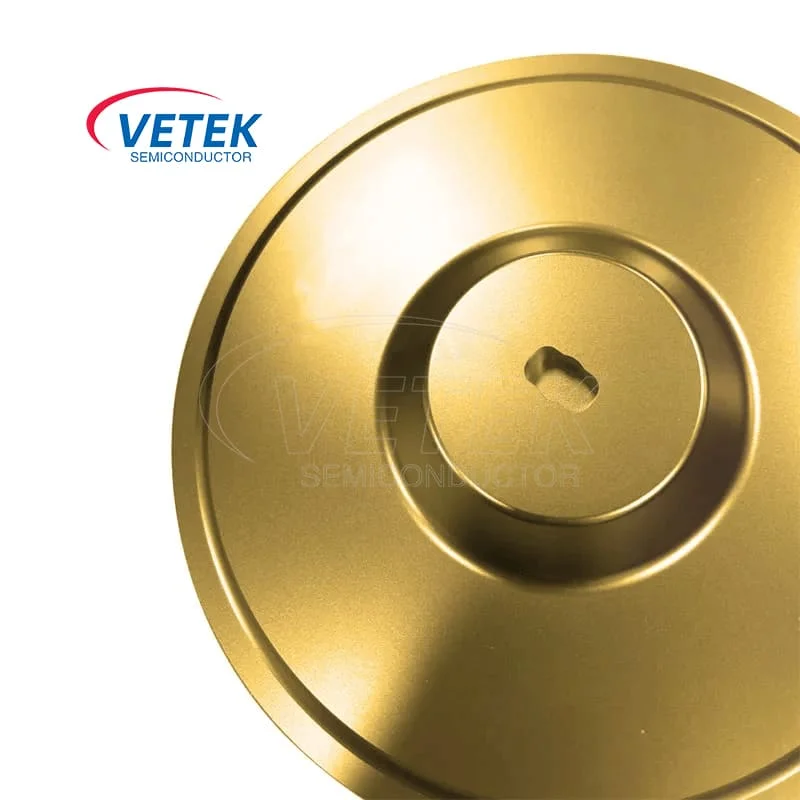

Tac coating parce

TaC Coating is currently mainly used in processes such as silicon carbide single crystal growth (PVT method), epitaxial disk (including silicon carbide epitaxy, LED epitaxy), etc. Combined with the good long-term stability of TaC Coating Plate, Veteksemicon's TaC Coating Plate has become the benchmark for TaC Coating spare parts. Expectamus ad vos becoming nostrum diu-term socium.

View More >> Mitte Inquisitionem >>

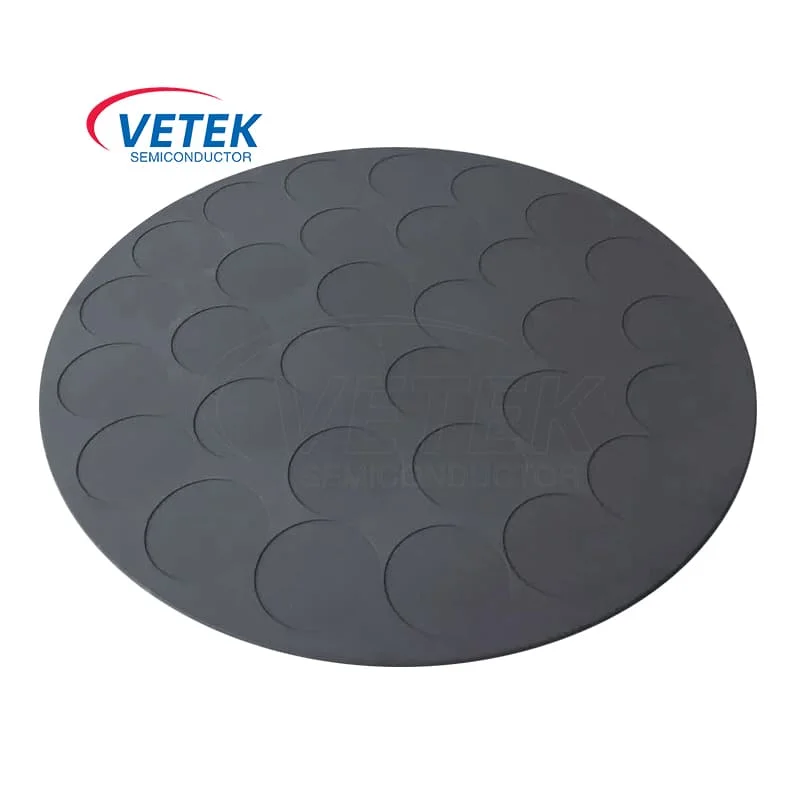

GaN on SiC epi susceptor

Gan in Sic epi susceptator ludit a vitalis munus in semiconductor processus per eius optimum scelerisque conductivity, summus temperatus processus facultatem et eget stabilitatem, et ensures altum efficientiam et materiam qualis est gan epitaxial incrementum processus. Vetek Semiconductor est Sina professional opificem de Gan in Sic epi susceptator, ut sincere expectamus tuum porro consultationem.

View More >> Mitte Inquisitionem >>

CVD Tac coating carrier

CVD Tac coating carrier maxime disposito ad epitaxial processus of semiconductor vestibulum. CVD Tac coating carrier scriptor Ultra-princeps liquescens punctum, optimum corrosio resistentia, et praestantes scelerisque stabilitatem determinare indispensability huius uber in semiconductor epitaxial processus. Receperint tuum adhuc inquisitionis.

View More >> Mitte Inquisitionem >>

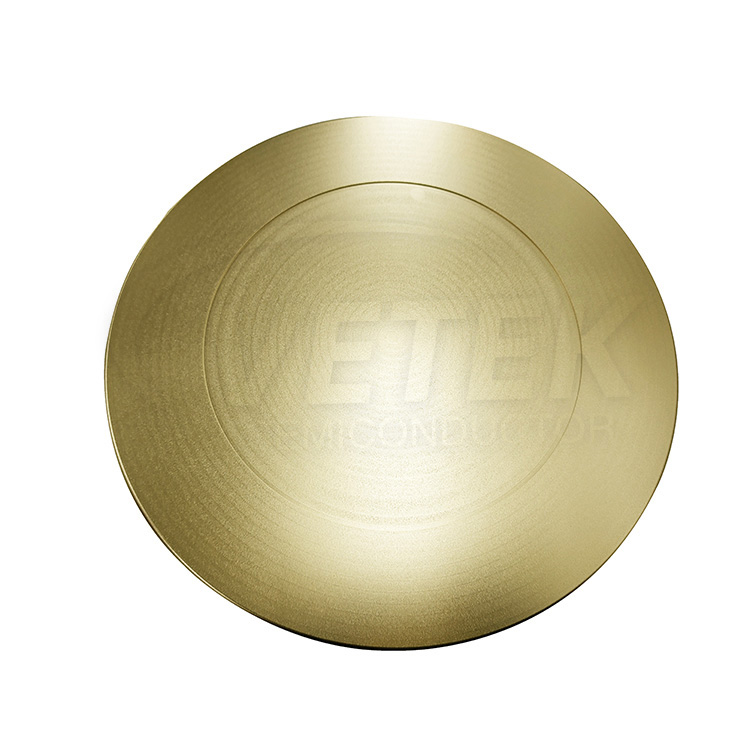

TaC Coated Graphite Susceptor

VeTek Semiconductoris TaC Coated Graphite Susceptor utitur depositione vaporum chemicorum (CVD) methodo comparandi tantalum carbidam in superficie partium graphitarum efficiens. Hic processus est perfectissimus et optimus efficiens proprietates. TaC Coated Graphite Susceptor vitam graphitatam extendere potest, migrationem graphitarum immunditiarum inhibere, et epitaxiae qualitatem curare. Exspectamus inquisitionem tuam.

View More >> Mitte Inquisitionem >>

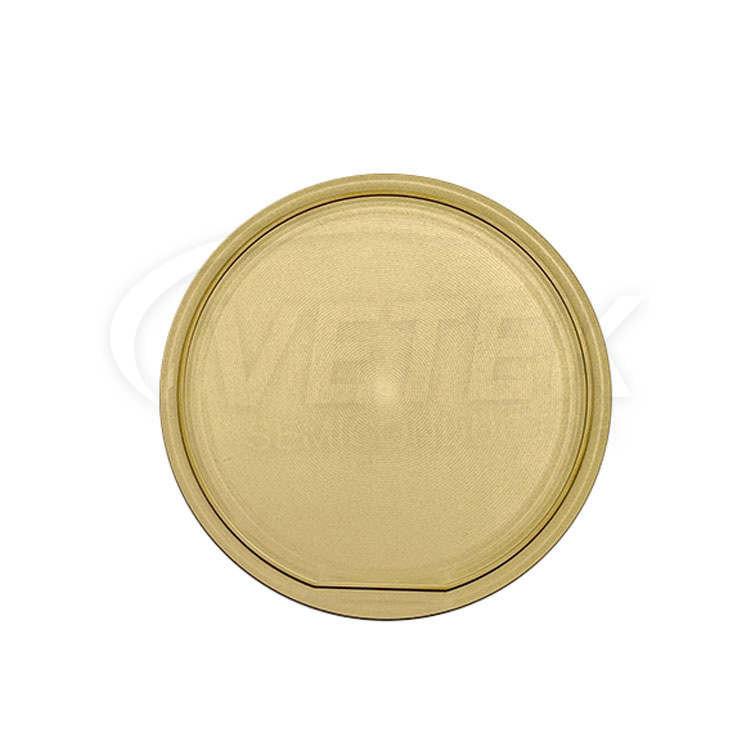

TaC Coating Susceptor

Vetek semiconductor munera Tac membrana, cum suis eximia Tac coating, hoc susceptatoris praebet multitudinem commoda quae seorsum a conventional solutions.integing seamless in existentium systems, Tac compatibilitatem et efficientem a Vetisek Systemes compatibility et efficientem. Et reliable euismod et summus qualitas Tac coating constanter eripere eximia results in sic epitaxy processes.we committitur providing qualitas products ad competitive prices et expectamus esse diu-term socium in Sinis.

View More >> Mitte Inquisitionem >>

Sicut professionalis {LXXVII} Manufacturer et elit in Sina, habemus nostram officinam. Utrum vos postulo customized servicia in occursum specifica necessitatibus vestris regione vel volunt emere provectus et durabile {LXXVII} in Sina, vos potest relinquere nos nuntium.
